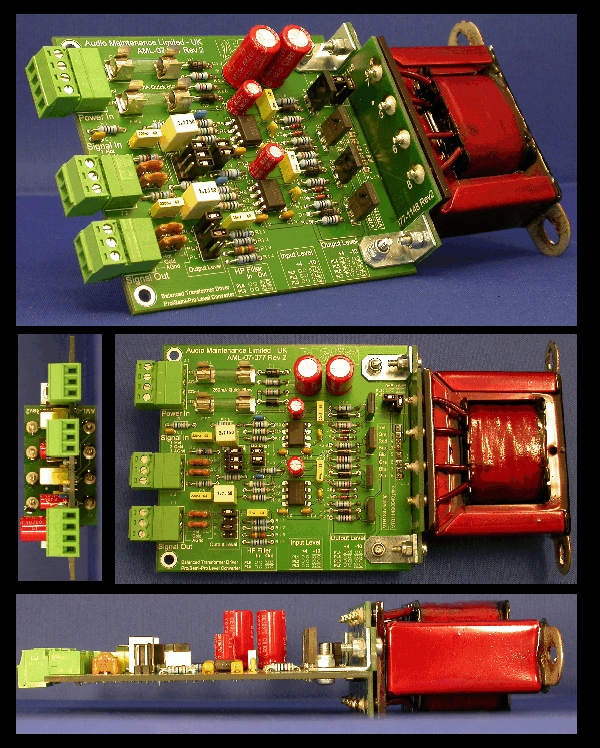

 | "Langley/Carnhill" transformer driver (and -10/+4 bi-directional level converter)
A low distortion high bandwidth balanced (or unbalanced) output transformer driver.
Applications include console / rack gear upgrades, pro/semi-pro level conversion (bi-directional), digital workstation "warmerisers".
Uses VTB1148 transformer so it will fit in most 1U rack cases.
Power requirements are +/- 16v to +/- 20v (typically 70mA per rail (fused at 250mA))
Typical specification (+24dBu input, 10k load, jumper setup for +4 in/+4 out, HP filter out, 50R source imp. +/- 16v rails).
Freq response; 10Hz-70KHz (+/- 0.5dB)
-3dB at approx 150kHz
THD+N 1KHz <0.001%
(20Hz <0.3% ; above 100Hz <0.02%)
Max output
Supplied with mating connectors.
Lead times may apply
(1 item) £104.95 each (Ex.VAT)
(2+) £99.95 each (Ex.VAT)
(8+) £94.95 each (Ex.VAT)
Quantity:
|
